AA4C Mobile Vehicle Safety Test Line Mobile Vehicle Inspection Facility For Both Truck And Cars - (Combination One)

Name: AA4C Mobile Vehicle Safety Test Line Mobile Vehicle Inspection Facility For Both Truck And Cars Combination One
Brand: AA4C
Price: 103000.00 USD

Buy cheap AA4C Mobile Vehicle Safety Test Line Mobile Vehicle Inspection Facility For Both Truck And Cars - (Combination One) product

Brand Name : AA4C

Model Number : CTYJ-15

Certification : CE

Place of Origin : Shanghai, China

MOQ : 5pcs

Price : $103000.00 - $110000.00/Cases

Supply Ability : 10000 Carton/Cartons per Year

Packaging Details : AA4C Vehicle Test Line dual plate side slip roller brake tester axle load with airbag lift for car 4000KG

Warranty : 12 Months

Product name : AA4C Mobile Vehicle Safety Test Line Mobile Vehicle Inspection Facility for both truck and cars - (Combination One)

Maximum axle-load mass (kg) : 15000KG

Motor Power : 11KW*2

Power supply : AC380V±10%50HZ

Payment term : T/T 30% Deposit

MOQ : 1 Set

Function : VEHICLE TEST LANE

Port : Shanghai

Contact Now

AA4C Mobile Vehicle Safety Test Line Mobile Vehicle Inspection Facility for both truck and cars - (Combination One)

Product Introduction:

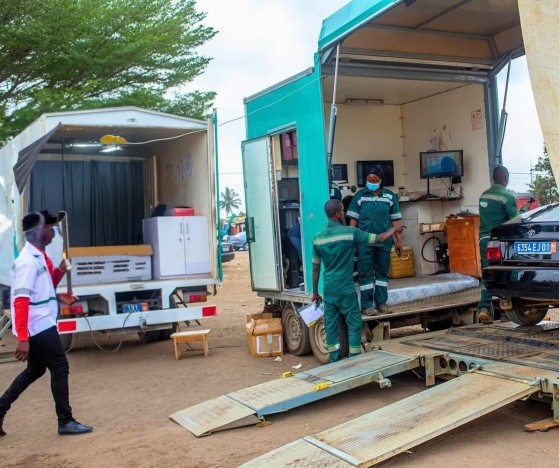

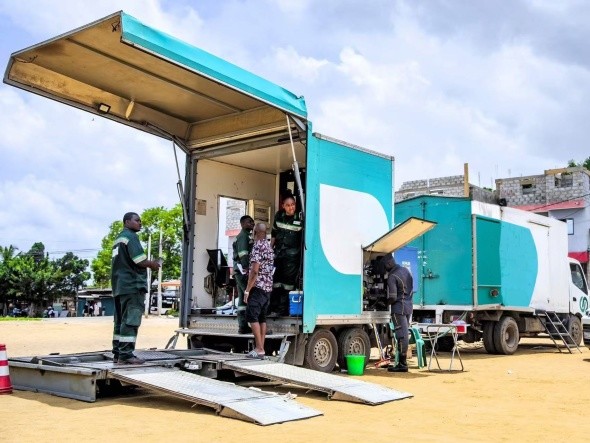

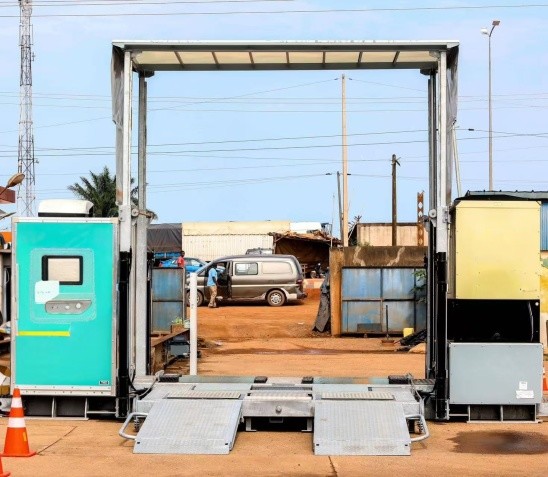

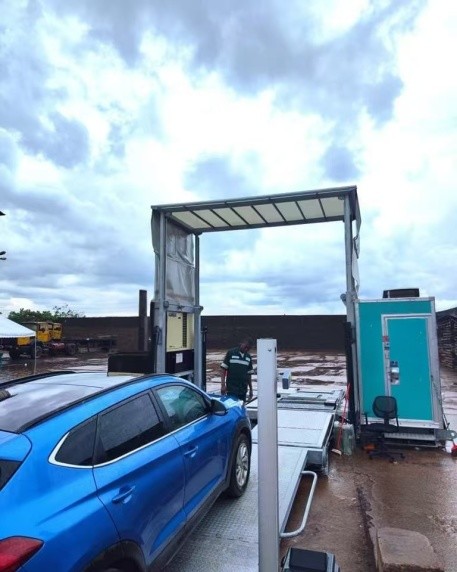

The mobile vehicle safety testing center has all the functions of fixed test station: it can be used for axle load of 15 tons ,two axes with wheelbase of less than 6 meters (rear Mercedes buses),Three-axis(single bridge drive), two-axle trailer, semi-trailer truck to implement headlamps, exhaust, smoke, sound level, side slip, axle load, braking power, speedometer and other safety performance testing.

Mobile
Different mobile devices can be combined to form test lane with different functionsNo need foundation. easy to move
Easy maintenance, simple connection
Carriage
With high-power silent generator, movement is not limited by power supply
Operating room with air conditioning, quiet and comfortable, not effected by the weather
Ultra-thin base design, lower chassis vehicles can be inspected
Hydraulically flipped ramps without manual intervention
Synchronization lift and down, to prevent the carriage from unbalancing
Can be customized according to customer needs

Technical parameter:

Model	Load	Test item/Features/Description	Qty	Configuration feature
CTYJ-15	15T	15T brake tester with axle load-Mobile one	1	Motor Power 11KW X 2 Testing Speed 2.0 Km/h Testing Range 0-80KN Roller Size D150mm x 1200mm Power Supply 380V 50Hz
		15T Side slip tester (single board)-Mobile one	1	Throw Speed 5Km/h-10Km/h Testing Plate Length 800mm
		15T Mobile speedometer tester-Mobile one	1	Roller size: 1.00-1200mm Testing speed 0-120Km/h
		15T play detector	1	Motor Power 2KW Power Supply 24V, 380V/220V Movement of Plate: ±80mm x ±50mm Hydraulic Pressure: 16Mpa
		headlight tester	1	Manual headlight tester: Testing range 0-25000cd
		Opacimeter	1	Opacimeter for testing diesel vehicle
		gas analyzer	1	For testing the car
		trolley	1	For gas and smoke
		Control system	1	Including cabinet, software, industrial computer, monitor, and tablet computer with printer and LED guide as well as voice broadcasting system
		Carriage	1	Including: container box, hydraulic system, generator, lifting system
