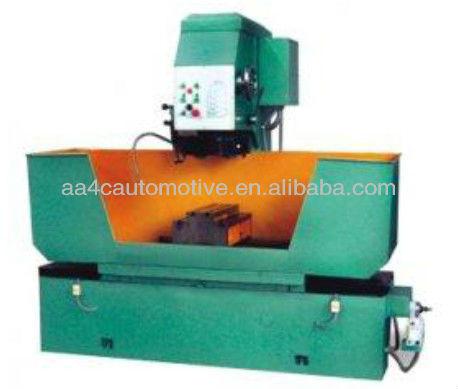

New Cylinder block surface grinding-milling machine 3M9735AX130

Name: New Cylinder block surface grindingmilling machine 3M9735AX130
Brand: AA4C
Price: 5 USD

Place of Origin : China

Brand Name : AA4C

Warranty : 1 Years

Green : on car brake lathe

Packaging Details : Plywood case

Port : shanghai

Supply Ability : 100 Unit/Units per Month

Price : $5,000.00 - $10,000.00/Units

Contact Now

New Cylinder block surface grinding-milling machine 3M9735A
cylinder honing machine
cylinder boring machine
hoing machine

Description:

The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships). Because of the engine be used for long, the connecting surface of cylinder body and cylinder cover would transmute and the engine will working off normal. Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled. The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
·The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material. Emery wheel feeding is manual. Emery wheel feed 0.02mm during hand wheel rotate 1 lattice. Pulley adopt with unloading to make the main spindle only usutain twisting moment.
·The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the potentiometer whorl twists and to gain right feed speed, easy to operate reliable.

Main specifications

Model	3M9735A×130	3M9735A×150
Working table size	1300×500mm	1500×500 mm
Max. length of grinding	1300 mm	1500 mm
Max. width of grinding	350 mm	350 mm
Max height of grinding	600 mm	800 mm
Vertical moving distance of grinding head	120 mm	120 mm
Transverse moving speed of working table	40-900 mm/min	30-900 mm/min
Grinding wheel disk diameter	360 mm	360 mm
Spindle speed	1400/700 r/min	1400/700 r/min
Electric motor power cooling down	0.4 Kw	0.4 Kw
Power of the main motor	1.5/2.4 kw	1.5/2.4kw
Overall dimensions(L×W×H)	2650×1050×2100 mm	2800×1050×2100 mm
Packing dimensions(L×W×H)	2980×1150×2200 mm	3200×1150×2280 mm
N.W. / G.W.	2800 / 3100 kg	3000 / 3300 kg

Company Profile

Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equipment manufacturer since 1995. AA4C means Always and All for (4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, We have passed ISO9001, authenticated by 2000 International Quality Control System.

We are mainly dealing AA4C products development, product design as well as OEM/ODM manufacturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China)

Facing the future opportunities and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the inter courses and cooperation with other producers in the field both at home and abroad; And exert ourselves to pay back our clients with high-quality products and perfect after-service.

Trade Info

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	SHANGHAI
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced againt BL copy&L/C at sight.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample package	Post :2900500720mm ; Power unit: 940X280X370mm
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination
